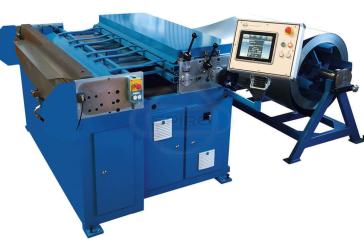

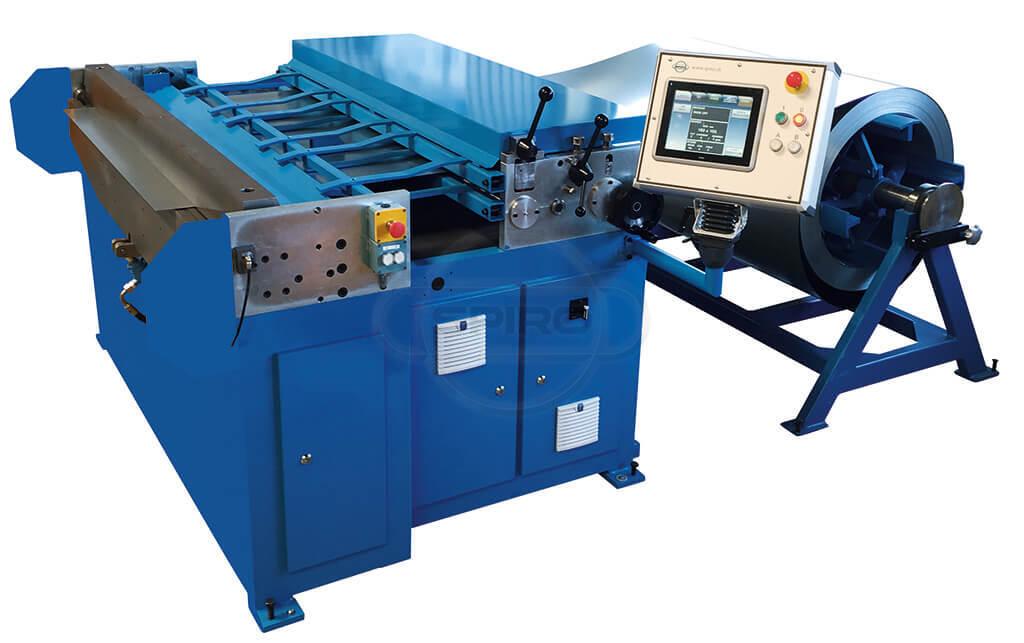

SPIRO® rectangular Ductline
- Equipment: SPIRO® rectangular Ductline - this powerful Ductline offers the highest output with a minimum of floor space required. As standard it’s delivered with the Spiro® state-of-the-art control system. This high performing Ductline has a fully hydraulic drive system which offers maximum force, strength and endurance.
» Unique modular approach to boost your Spiro® Ductline into a fully automatic rectangular duct forming line with integrated flanges - expand gradually or at once, you decide!» Unique Modular Solution Compact or Fully Integrated - You Decide! Future Module Integration Always Possible Latest Spiro® Technology
- Data:
» Touch screen controller with genuine Spiro® user interface
» Programs for L-sections, U-ducts, fully wrapped ducts or plain sheet
» Z-Profile (Trapez-Profile and bead as option)
» Fully hydraulic feeding, shear and folding unit
» Stand-alone encoder for higher accuracy
» Smallest footprint in the industry - Machine data:
» SPIRO® Ductline
Technical data:
Min duct dimension for box selection 125 x 125mm
Min dimension L-selection 10 x 120mm
Max duct dimension for box selestion 2500 x 2500mm
Material:
0.5 - 1.25mm galvanized

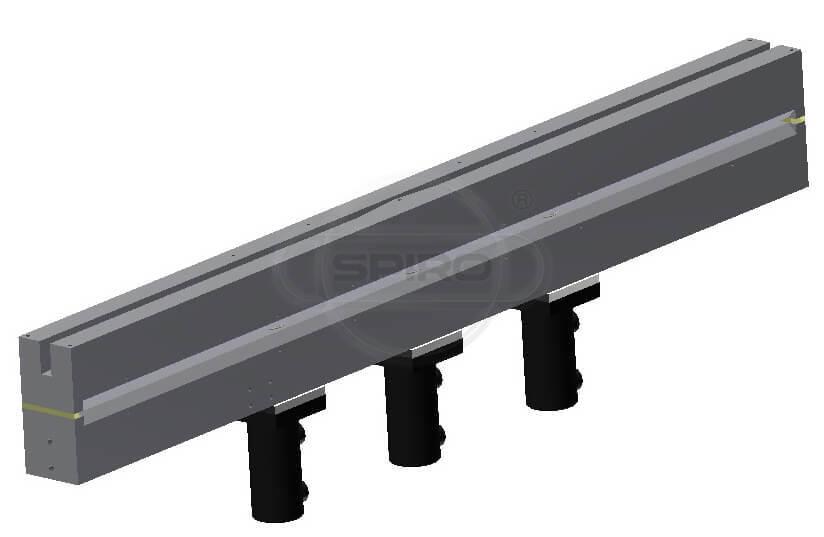

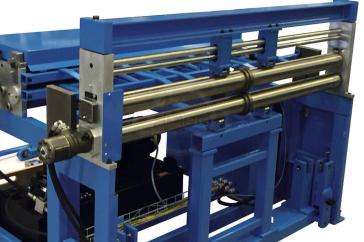

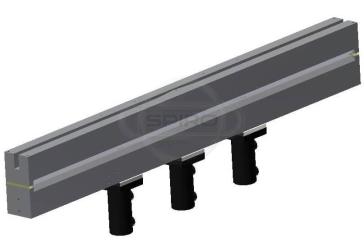

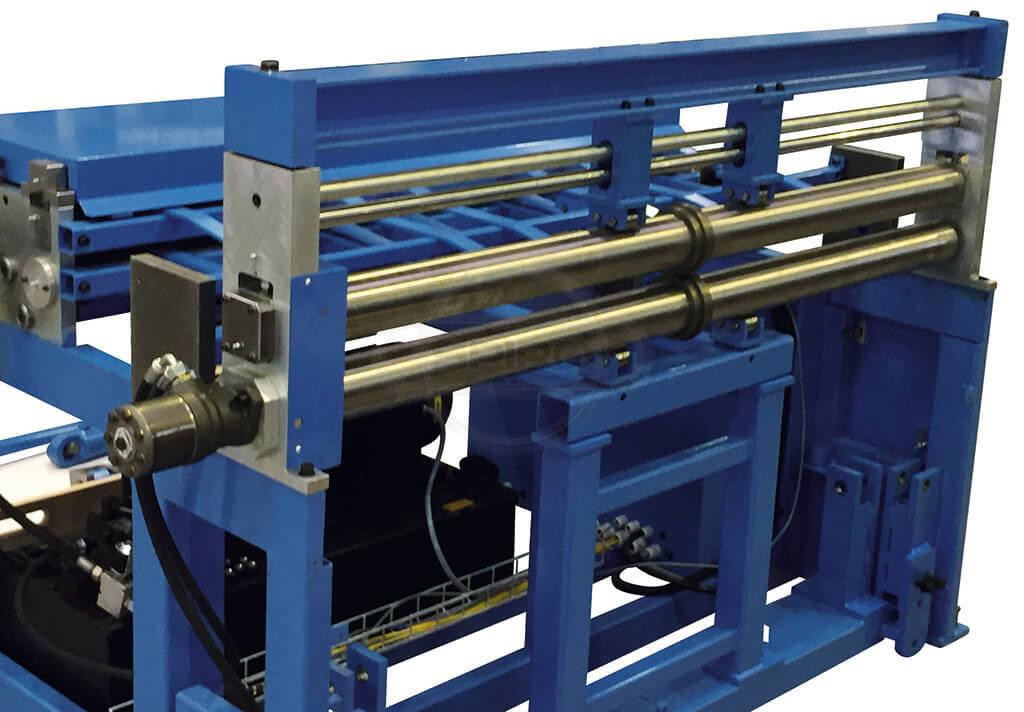

» Roller shear & Tie rod punch unit combined
Technical data:
Max sheet width 1500mm
Max sheet thickness 1.2mm galvanized
Upper and lower slitting rollers adjustable full length

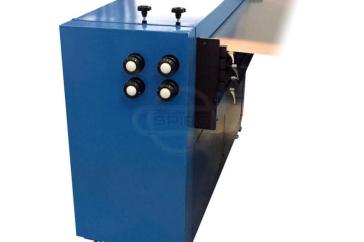

» Sheet selector M6 - 1500
Technical data:
6 coils
Hydraulic driven coil feed
Quick change of coil to feed
» Support frames decoiler 6 stations
» Decoiler DCV-7000
Technical data:
Decoiler with 7t capacity
Coil width max 1500mm
Coil inside 470-600mm - Made in: Switzerland
- Price: ask for quotation
- Payement terms: 100% before delivery
- Delivery conditions: FCA Romania (INCOTERMS)
- Delivery date: in stock
- Installation and education: installation and training is possible under additional charge
- Warranty: no
- Packaging: Seller will packed machine to transport positions on Euro pallets and send packaging information to buyer incl. number of pallets and weight
- Machines manuals: included in paper form
- Ownership: Machine is not encumbered by third party rights
